Product No : EP-35

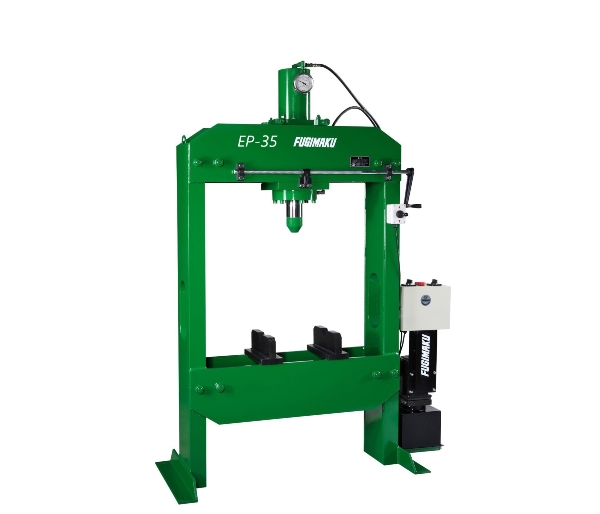

Product Name : Electric Hydraulic Press
Product Description
Manual Hydraulic Press
  • For auto repair sevices, general machinery maintenance industry...etc
  • Applies to dis-assembling for bearing, shaft, bushing, and machinery industry
  • Suitable for straightening, rectifying and molding for shaft, machine parts, and metal panel beating
  • The frame is made of steel, and the precision hydraulic cylinder is equipped with special componenet, which is stable and durable
  • The operating lever control easily, the motor automatically stops when the lever reset, it is power-saving, durable and ease to operate
Model No.CapacityCylinder StrokePressureHosepowerVoltageLeft/Right PitchN.W.Cuft
EP-35 35T Φ150mm 515 200Kgs 2HP 220/380/415v
60/50HZ
660 620Kgs 30.3
EP-60 60T Φ200mm 515 195Kgs 3HP 220/380/415v
60/50HZ
580 810Kgs 40.5
EP-100 100T Φ250mm 515 205Kgs 5HP 220/380/415v
60/50HZ
500 1160 Kgs 49.3
proimages/products/07-Hydraulic_press/EP-35_dwg.jpg Unit: mm
Model No.ABCDE(Max.)FGHI
EP-35 2000 900 580 1265 1000 1365 350 238 770
EP-60 2000 900 580 1265 1000 1365 350 300 770
EP-100 2000 900 580 1265 1000 1365 350 370 770
