Product No : FG-97621
Product Name : Wheel Alignment Lift
Product Description
Triumvirate Synchronous Hydraulic Vehicle Lift
  • Ultra-thin, no digging.
  • Suitable for wheel alignment and balancing.
  • Without Connecting Rod.
  • 4 Hydraulic cylinders symmetrical support.
  • two extension plate extend the upper level to 1960mm.
  • Safety lock is equipped.
  • Platform minimum Height is 22 cm.
Model No.CapacityHorsepowerPower SupplyLift Range(mm)Time of full reaiseType of DirveControl
FG-97621D  3.5 Tons 2HP 220/380/415V
60/50HZ
上層410
下層1550
~48 sec. Hydraulic synchronization Electronic Control

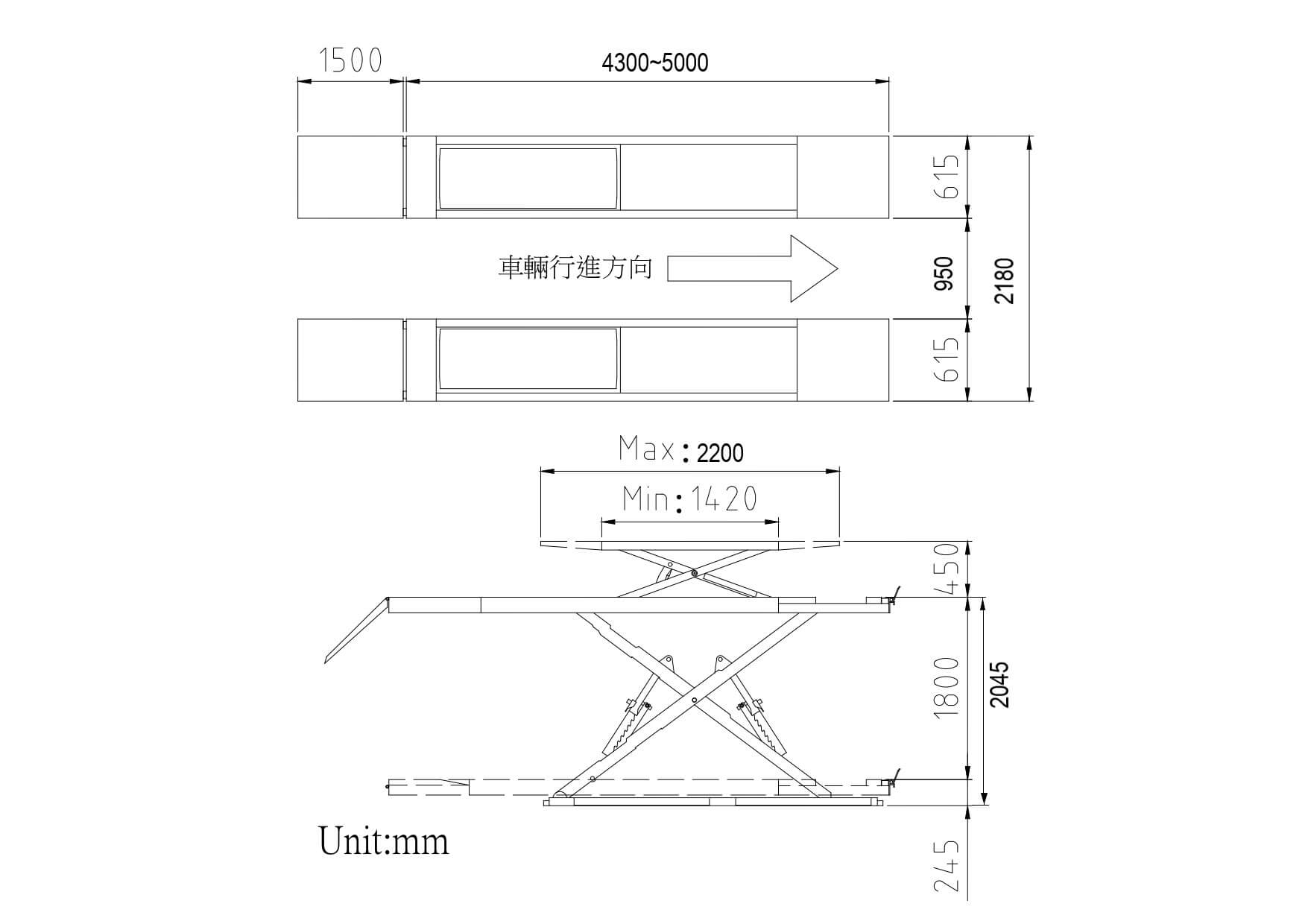

proimages/products/01-Car_Lift/01-Wheel_Alignment_Lift/97621_wheel_alignment_lift_dwg.jpg

No extension plate

Double Extension pull out

Double Extension closed

ST Arm pull out

ST Arm closed
