Product No : HP-35
Product Name : 35 Ton Manual Shop Press
Product Description

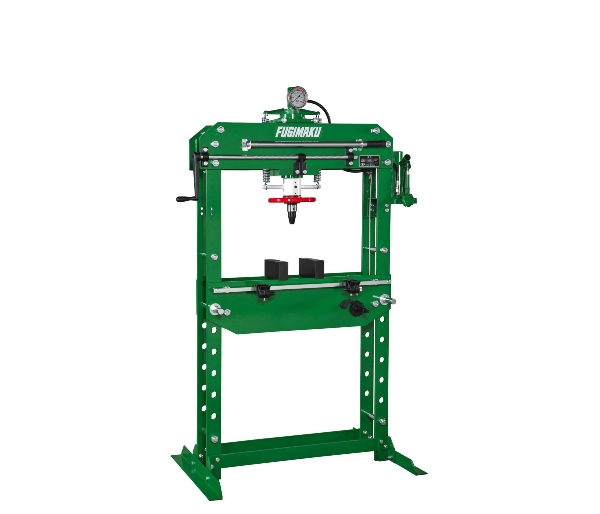

35 Ton Hydraulic Press
  • For auto repair sevices, general machinery maintenance industry...etc
  • Applies to dis-assembling for bearing, shaft, bushing, and machinery industry
  • Suitable for straightening, rectifying and molding for shaft, machine parts, and metal panel beating
  • The frame is made of steel, and the precision hydraulic cylinder is equipped with special componenet, which is stable and durable
  • Independent hydraulic system that is durable usage and easy to maintain.
Model No.CapacityCylinder StrokeAuxiliary StrokePressureCylinder Pressure SpeedReverse Pressure SpeedLeft/Right PitchN.W.Cuft
HP-35 35T Φ110mm 150mm 100mm 370Kgs 1.2mm/cycle 6mm/sec. 500mm 287Kgs 40
proimages/products/07-Hydraulic_press/HP-35_dwg.jpg Unit: mm
Model No.ABCDE(Max.)E(Min.)FGHIJK
HP-35 1035 1135 770 1795 950 417 105 130 848 217 193 270
