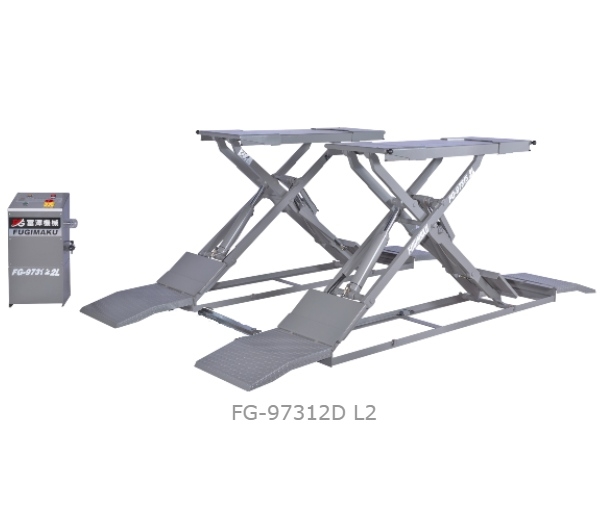

Product No : FG-97312D
Product Name : Thin Scissor Lift
Product Description
  • 4 Hydraulic cylinders symmetrical support
  • Ultra-thin, no digging
  • Minimum Platform Height 12cm
  • FG-97312D With Connecting Rod which is more stable
Model No.CapacityHorsepowerPower SupplyLift Range(mm)Time of full reaiseType of DirveControl
FG-97312 D 3Tons 2HP 220/380/415V
60/50HZ
1700 ~40Sec Hydraulic synchronization Electronic Control
FG-97315 D 3.5Tons 2HP 220/380/415V
60/50HZ
1700 ~40Sec Hydraulic synchronization Electronic Control

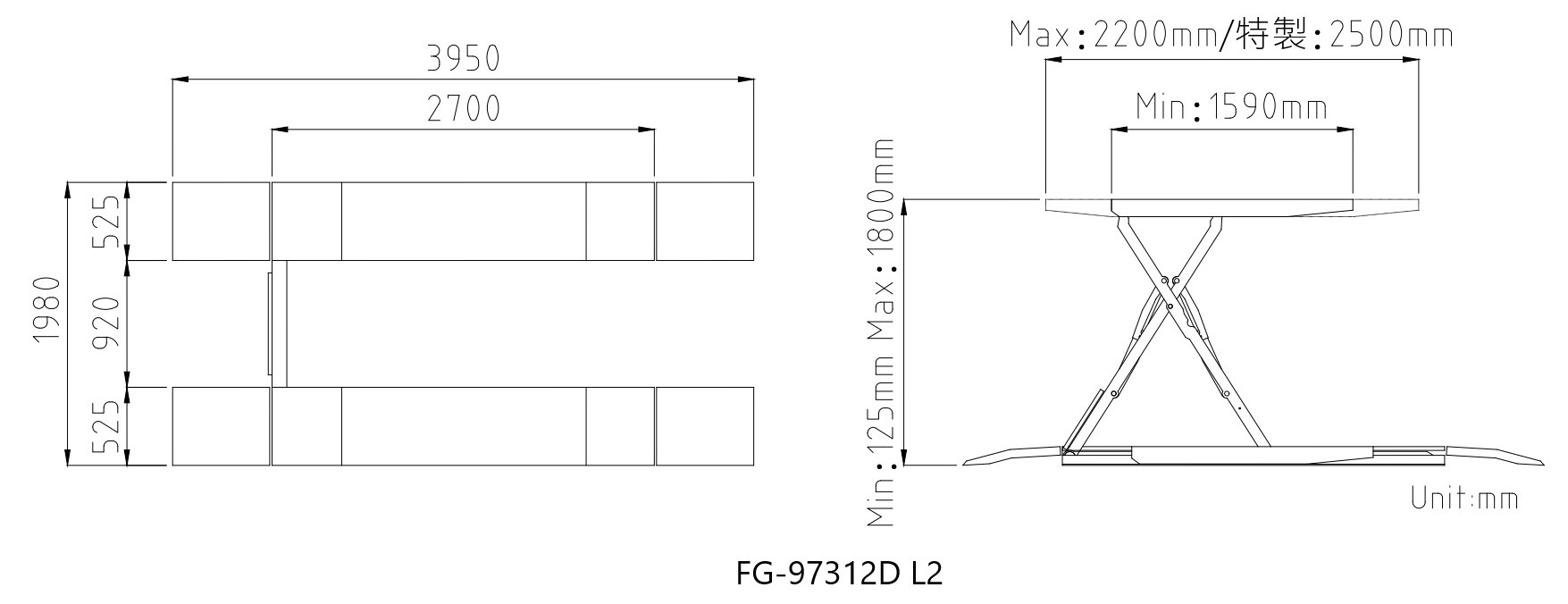

Thin_Scissor_Car_Lift/97312D_dwg

No extension plate

Single extension

Double Extension with knob pull out

Double Extension with knob closed

ST Arm pull out

ST Arm closed

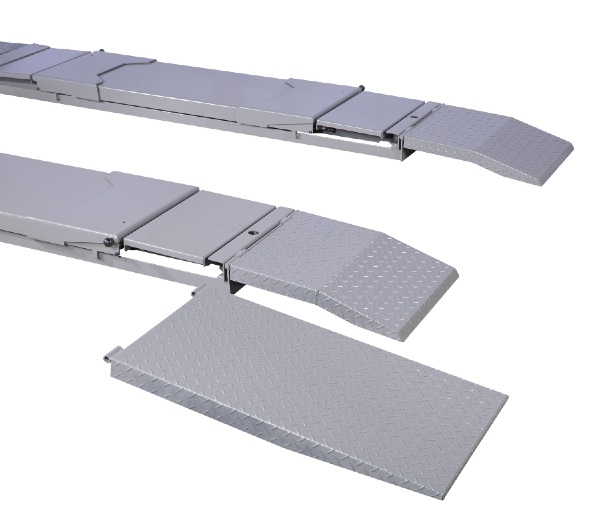

Ramp Exptended
