Product No : FG-97202

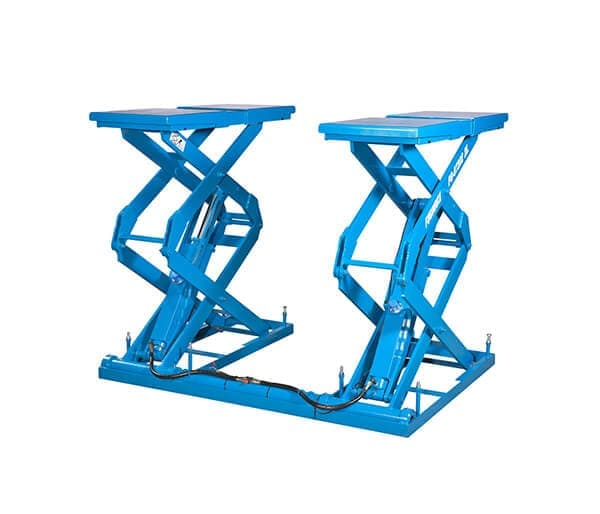

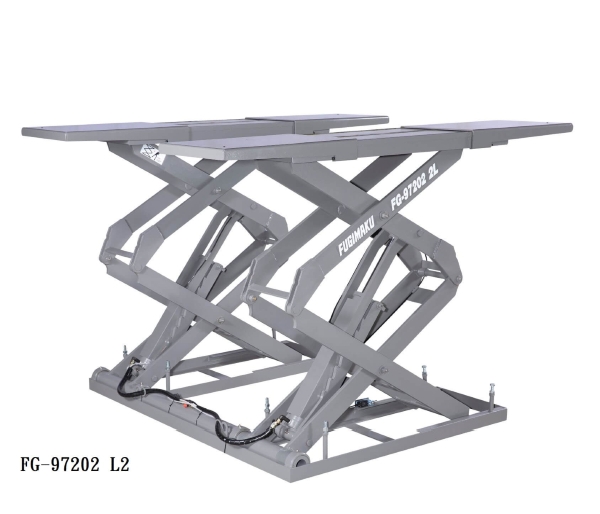

Product Name : In Ground Car Lift
Product Description
  • In Ground.
  • Safety lock is equipped.
  • two extension plate extend to 2000mm.
  • Linkage Rod keeps stable and Synchronous balance the platform.

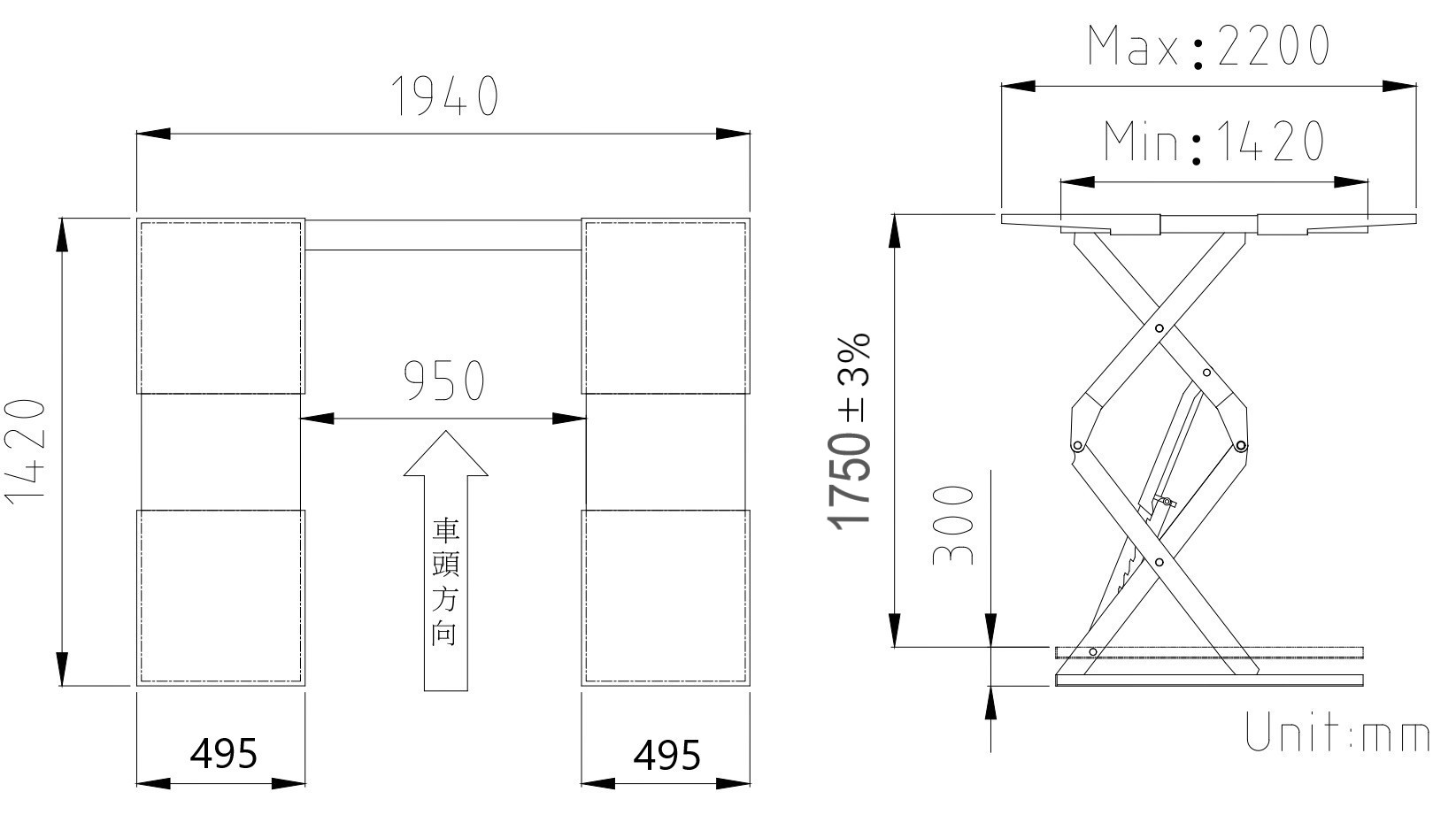

Model No.CapacityHorsepowerPower SupplyLift Range(mm)Time of full reaiseType of DirveControl
FG-97202 L2 3.5 Tons 2HP 220/380/415V
60/50HZ
1700 ~50Sec Hydraulic synchronization Electronic Control

No extension plate

Single extension

Double Extension pull out

Double Extension closed

ST Arm pull out

ST Arm closed
