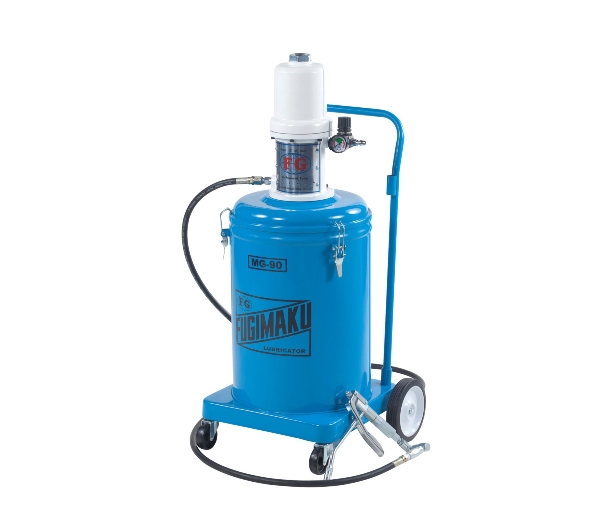

Product No : MG-90
Product Name : Air Pressure Grease Pump
Product Description

An air-pressure grease pump is a tool used in various industries for lubrication. It operates by utilizing compressed air to deliver grease to machinery parts that need lubrication.

Uses MG-90 air-pressure grease pump benefits

  • Efficiency: Air-operated grease pumps are highly efficient and can deliver a consistent flow of grease to multiple points simultaneously. This feature is particularly useful in industrial applications where a large number of machines require regular lubrication.
  • Versatility: These pumps can handle various types of grease, including high-viscosity grease, without any difficulty. This versatility allows them to be used in a wide range of applications, from automotive to heavy machinery industries.
  • Ease of Use: The grease gun is equipped with a swivel joint, Easy to operate with one hand and four universal wheels on the base make it easy to move around.
  • Consistent Lubrication: With air-operated grease pumps, the amount of grease delivered to the machinery parts is consistent, ensuring optimal lubrication and reducing the risk of equipment failure due to inadequate lubrication.
  • Safety: Unlike manual grease guns, air-operated grease pumps eliminate the risk of repetitive strain injuries (RSI) associated with manual pumping. Additionally, Suction and pumping are two separate systems, the system eliminates grease contamination and waste.

Air Operated Grease Lubricator Specification

Model No.CapacityMax PressureRaioVolume OutputHose
MG-90 30L 4~9 Kgs 1/45~1/50 960g/min 1/4"*2W*3M

Test Environment: #2 Grease, room temperature:25 ℃ , air pressure 8Kg/cm2, and 3m grease tube.

Different conditions and different grease may cause different volume output.

Note: High-Pressure grease gun 650-410 and hose reel 95210-G or 95220-G are optional.

Air Operated Grease Lubricator Accessories
