Product No : WFC-500

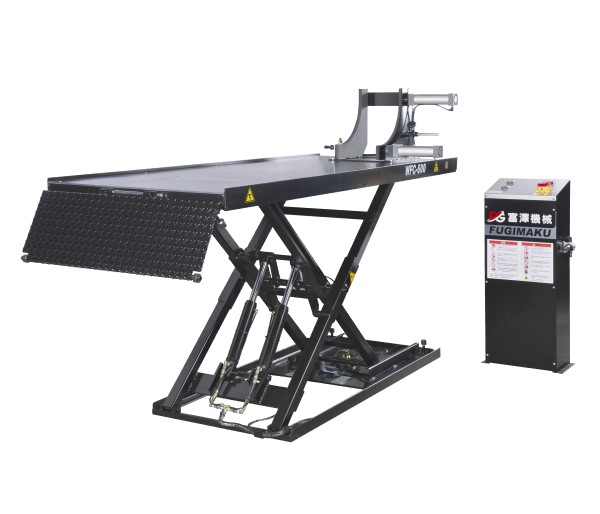

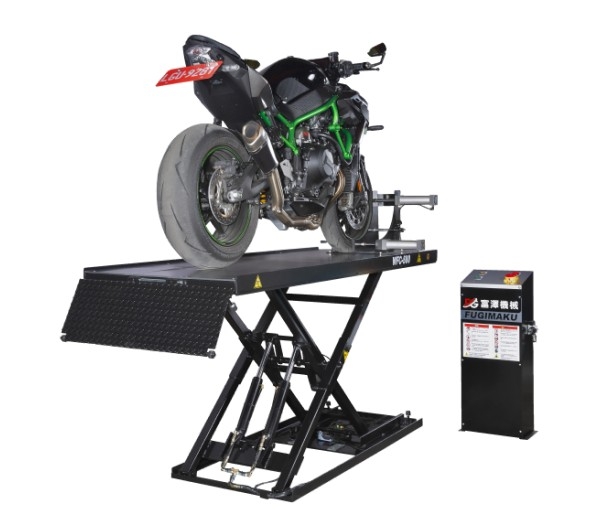

Product Name : Custom Motorcycle Lift Table
Product Description

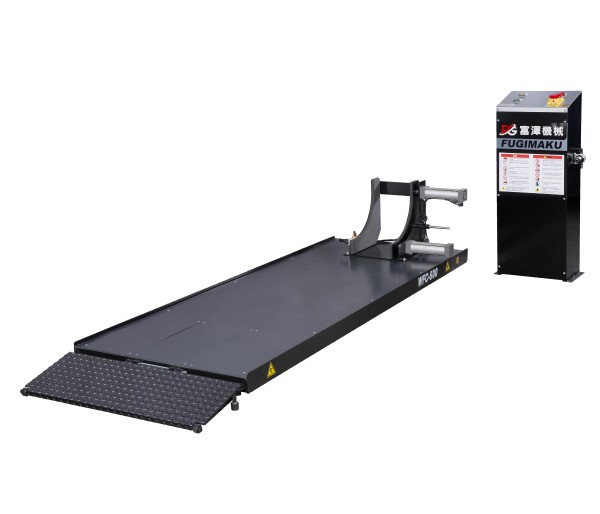

  • The motorcycle lift table platform's maximum height is 19 cm, minimum height is 9cm.
  • The safety lock is equipped.
  • A rubber pad, stainless steel plate, pneumatic clamp is optional.
Model No.CapacityHorsepowerPower SupplyLift Range(mm)Time of full reaiseType of DirveControlPlatform LengthPlatform WidthMinimum Height
WFC-300 300Kgs 1HP 110/220V
60/50HZ
1200±20 ~45Sec Hydraulic synchronization Electronic Control 205cm 71cm 13cm
WFC-300L 300Kgs 1HP 110/220V
60/50HZ
1200±20 ~45Sec Hydraulic synchronization Electronic Control 205cm 71cm 9cm
WFC-500 500Kgs 2HP 220/380V
60/50HZ
1200±20 ~45Sec Hydraulic synchronization Electronic Control 220cm 80cm 13cm
WFC-500L 500Kgs 2HP 220/380V
60/50HZ
1200±20 ~45Sec Hydraulic synchronization Electronic Control 220cm 80cm 9cm
WFC-750 750Kgs 2HP 220/380V
60/50HZ
1200±20 ~45Sec Hydraulic synchronization Electronic Control 240cm 90cm 19cm
WFC-750L 750Kgs 2HP 220/380V
60/50HZ
1200±20 ~45Sec Hydraulic synchronization Electronic Control 240cm 90cm 13cm
  • Rubber pad, stainless steel plate , pnuematic clamp is optional
  • A. stainless steel plate
  • B. pnuematic clamp
  • C. Tool Tray
  • D. Rubber Pad
  • E. pnuematic clamp

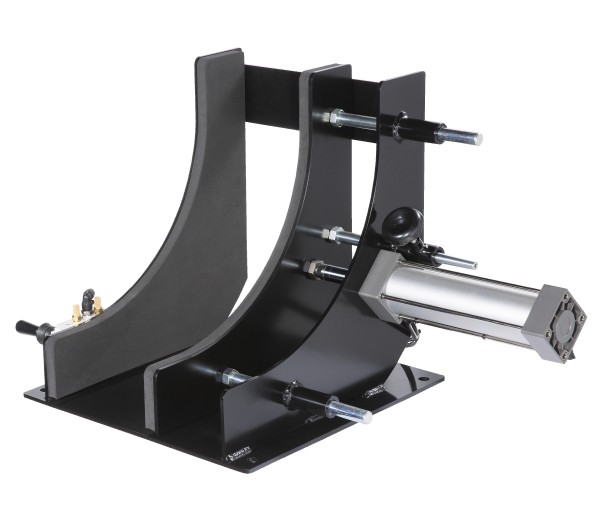

  • There are 3 type of Pnuematic Clamp: medium, large, and large with two cylinders
