Product No : KO-580

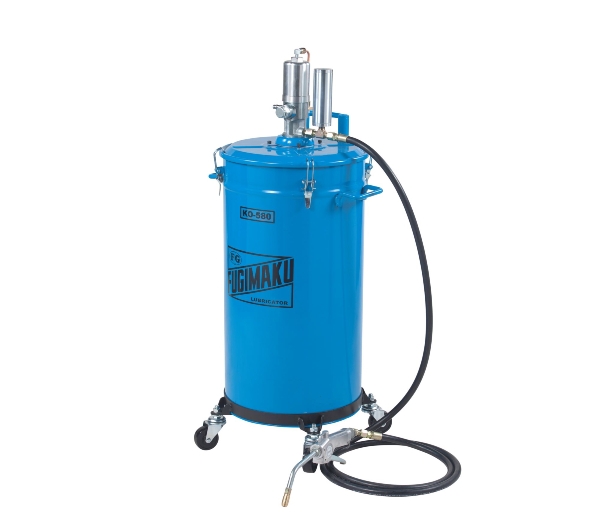

Product Name : Low Noise Air operated Oil Lubricator
Product Description
  • Suction and pumping are two separated systems, the system eliminates grease contamination and waste.
  • Generally use in workshop, Auto shop, service stations, fleet maintainance, mining, agruculture, armed forces, construction, transportation vehcile, any mechanical equipment wherever needs lubrication.
  • Use a power-free pneumatic pump for use in places with flammable materials.
  • The body of pump is made of aluminum alloy.

  • It is suitable for the extraction of 5#~90# Machine oil and gear oil under #140, and general non-corrosive solvents.
  • It is recommended to purchase a flow meter to clearly show the amount of oil used.
    FG-950-442M- flow meter FG-950-456EM- digital flow meter
Model No.CapacityMax PressureRaioVolume OutputHose
KO-580 60L 6~9 Kgs 1/2 4600c.c./min 3/8"*1W*3M

Test Environment: #40 machine oil, room temperature:25 ℃ , air pressure 8Kg/cm2, and 3m oil tube.

Different conditions and different oil may cause different volume output.

Note: Hose Reel 95320-O and 95420-O is optional.

Hose Reel 95320-O

Dial Flow Meter FG-950-442M

Digital Flow Meter FG-950-456EM
