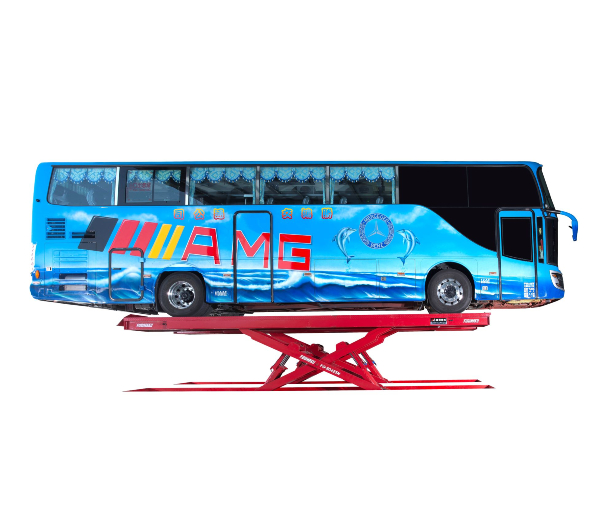

Heavy Duty Bus Lifts
| Model No. | Capacity | Hosepower | Power Supply | Lift Range(mm) | Min. Height | Time of full raise | Type of Drive | Control |
|---|---|---|---|---|---|---|---|---|
| FG-20410 | 10T | 5HP | 220/380V 60HZ |
1700mm | 350mm | ~65 sec. | Hydraulic synchronization | Electronic Control |
| FG-20415 | 15T | 5HP | 220/380V 60HZ |
1700mm | 350mm | ~65 sec. | Hydraulic synchronization | Electronic Control |
| FG-20425 | 20T | 5HP | 220/380V 60HZ |
1700mm | 370mm | ~65 sec. | Hydraulic synchronization | Electronic Control |
| Model # | A | B | C | D | E | Min. Height | Max. Height |
|---|---|---|---|---|---|---|---|
| FG-20410 | 6000 | 900 | 950±50 | 2810 | 1360 | 350(note1) | 1700 |
| FG-20415 | 6500 | 930 | 950±50 | 2810 | 1360 | 350(note1) | 1700 |
| FG-20425 | 8000 | 930 | 950±50 | 2810 | 1360 | 370(note1) | 1700 |
- Length and height is customizable,please sent inquiry for more information
