Product No : FG-97312DN
Product Name : Thin Scissor Lift
Product Description
  • 4 Hydraulic cylinders symmetrical support
  • Ultra-thin, no digging
  • Minimum Platform Height 12cm
  • FG-97312DN Without Connecting Rod, easy access
Model No.CapacityHorsepowerPower SupplyLift Range(mm)Time of full reaiseType of DirveControl
FG-97312 DN 3Tons 2HP 220/380/415V
60/50HZ
1700 ~40Sec Hydraulic synchronization Electronic Control
FG-97315 DN 3.5Tons 2HP 220/380/415V
60/50HZ
1700 ~40Sec Hydraulic synchronization Electronic Control

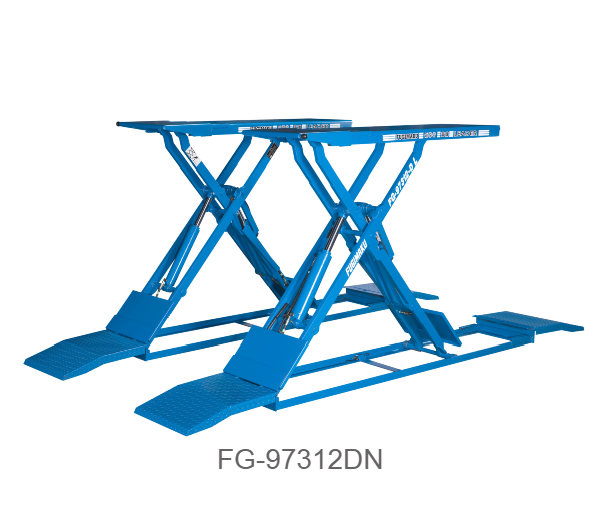

FG-97312DN

No extension plate

Single extension

Double Extension with knob pull out

Double Extension with knob closed

ST Arm pull out

ST Arm closed
